COMMERCIAL & INDUSTRIAL SOLUTIONS
Reliable, scalable Commercial & Industrial lithium-ion energy storage from 19.2kWh to 614kWh. Secure your power, control your costs and drive your business into the future.
THE POWERCUBE RANGE
Powercube is designed for businesses that can’t afford downtime.
Built on the ES192100T module (6.4 kWh each), it scales effortlessly from 19.2 kWh to 410 kWh, giving you the flexibility to start small and expand as your energy needs grow. With industry-leading efficiency, 10+ years of reliable performance and certified LiFePO₄ safety, Powercube ensures your operations stay powered, your costs stay predictable and your future stays secure.
Reliable High-Voltage Energy Storage
Scalable Power for Homes and Businesses.
Functions & Features
Powercube combines scalability, performance, and safety into one seamless system.
Whether you’re securing backup power, reducing costs, or scaling up operations, these six core features ensure your business stays powered and protected.
Scalable Power
From 19.2 kWh to 410 kWh — expand as your business grows.
High Performance
≥95% round-trip efficiency with stable, reliable output.
Long Lifespan
4,000+ charge cycles at 80% DoD, designed for 10+ years.
Smart Monitoring
SOC and status indicators with RS232 / RS485 / CAN connectivity.
Safe & Certified
LiFePO₄ chemistry with IP55 protection and global compliance.
Seamless Integration
Compatible with leading inverters and flexible for On-Grid, Backup, or Off-Grid systems

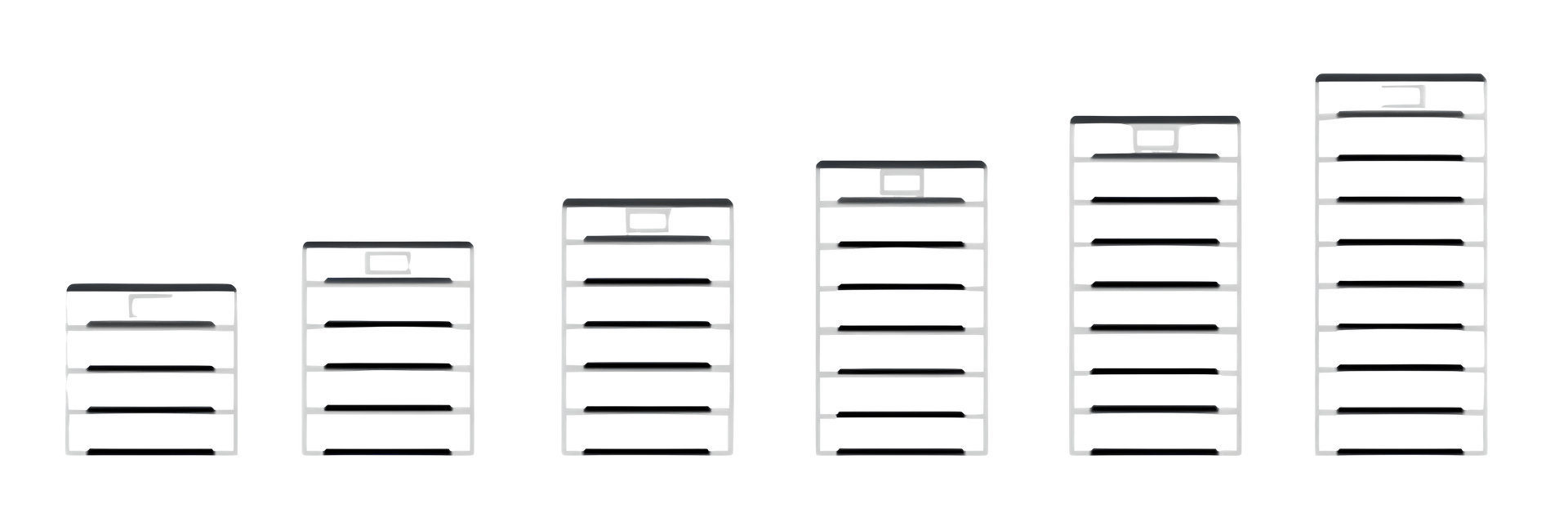

ES192100T Range
Technical Specifications
| Parameter | 3 Modules | 4 Modules | 5 Modules | 6 Modules | 7 Modules | 8 Modules |
|---|---|---|---|---|---|---|
| Usable Energy | 19.2 kWh | 25.6 kWh | 32 kWh | 38.4 kWh | 44.8 kWh | 51.2 kWh |
| Max. Usable Energy | 154 kWh | 205 kWh | 256 kWh | 307 kWh | 358 kWh | 410 kWh |
| Nominal Voltage | 192 V | 256 V | 320 V | 384 V | 448 V | 512 V |
| Operation Voltage | 168–219 V | 224–292 V | 280–365 V | 336–438 V | 392–511 V | 448–584 V |
| Max. Discharge Current | 60 A | 60 A | 60 A | 60 A | 60 A | 60 A |
| Max. Charge Current | 60 A | 60 A | 60 A | 60 A | 60 A | 60 A |
| Charge Voltage | 216 V | 216 V | 216 V | 216 V | 216 V | 216 V |
| Net Weight | 190 kg | 247 kg | 301 kg | 358 kg | 415 kg | 572 kg |
| Dimensions (W×D×H) | 710×450×692 mm | 710×450×858 mm | 710×450×1025 mm | 710×450×1191 mm | 710×450×1358 mm | 710×450×1524 mm |
BUSINESS OPTIMISATION
At CHASE Technologies, we are passionate about efficiency.
We have done the research and built partnerships to be able to provide our client's with industry leading expertise.
By assessing your operation, we provide hollistic solutions that focus on driving efficiency and cost savings.
CORE AREAS OF FOCUS:
Electric Material Handling Equipment
Optimise entire warehouse operations with lithium-ion power for stackers, pallet jacks, and other essential machinery.
High
Productivity Gain
Electric Cleaning Machines
Boost efficiency and reduce emissions with powerful, long-lasting lithium-ion batteries for industrial cleaning equipment.
2x
Extended Run Time
Smart EV and Fleet Charging
Future-proof your commercial property and support the transition to e-mobility with reliable, rapid EV charging infrastructure.
<1 Hour
For 80% Fleet Vehicle Charge
Wheeling Solutions
Unlock access to alternative energy sources by transporting electricity across the national grid, enhancing energy security and choice.
Grid
Energy Flexibility
Electric Transport Vehicles
Power a diverse range of electric transport vehicles beyond forklifts for efficient and sustainable internal logistics.
Zero
On-site Emissions
Li-Ion Handling & Disposal
Ensure safe, compliant, and environmentally responsible handling, maintenance, and end-of-life disposal of lithium-ion batteries.
Eco
Friendly Process
Carbon Reduction & Credits
Achieve your sustainability goals by reducing your carbon footprint and potentially monetizing your efforts through carbon credits.
Net
Zero Pathway
Energy-Efficient Equipment & Appliances
Achieve energy independence and ensure operational continuity with high-capacity lithium-ion systems and energy-efficient equipment.
99.9%
Uptime Potential
After assessing each aspect of your operation, we calculate costs saved on fossil fuels and traditional sources of energy and build this into one holistic package.
Once your proposal has been compiled, we will work through your energy savings and provide you with our flexible finace options.
The installation, maintenance and warranties are all handled in-house and you benefit from one point-of-contact, elminating the administrative nightmares.
Imagine driving your operation through power that you have independently generated.
Schedule a consulation and start your journey to energy efficiency.
YOUR ENERGY OPTIMISATION JOURNEY
Embark on a seamless path to energy independence and operational excellence.
Our structured process ensures a tailored solution that meets your unique business goals, from initial consultation to full-scale implementation.
Initial Meeting
We begin with an in-depth discussion to understand your operations, energy challenges, and long-term sustainability objectives.
Comprehensive Site Audit
Our experts perform a detailed assessment of your facility, measuring energy consumption, evaluating current infrastructure, and identifying optimization opportunities across all key areas such as solar and forklifts.
Key Factor Analysis
We assess critical data such as demand profiles, operational patterns, sustainability targets, and financial considerations to define the most effective strategy.
High Expectations
Receive a customized proposal outlining recommended solutions, projected savings, implementation timelines, and flexible finance options including PPA models.
